Spare Parts

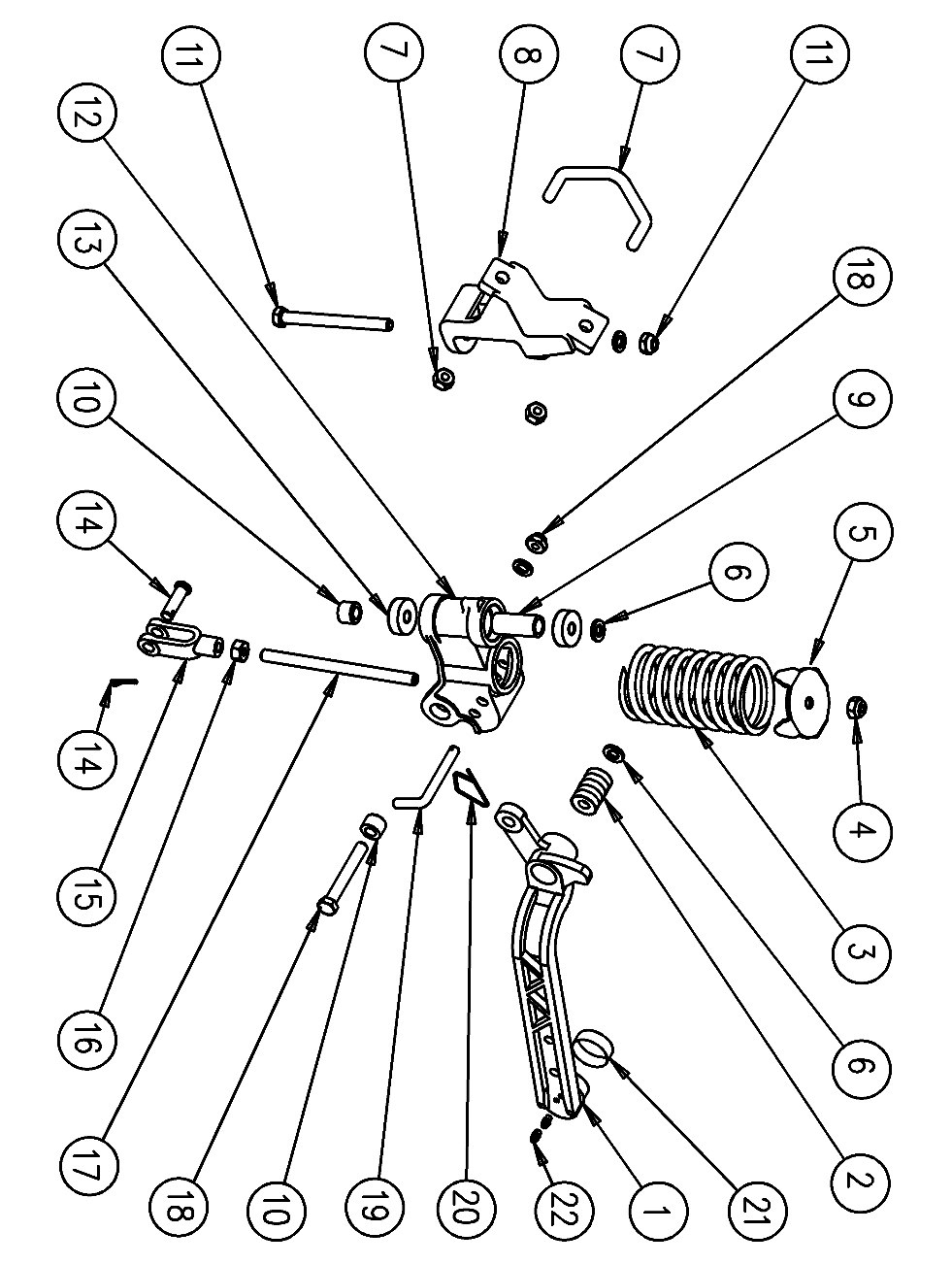

Presswheel Module - CURRENT - 2004 Onwards w Bearing Pivots


1 2 3 4 5 6 6 7 7 8 9 10 10 11 11 12 13 14 14 15 16 17 18 18 19 20 21 22

Hover over a part in the diagram to view details

Ref No Part No Name Price

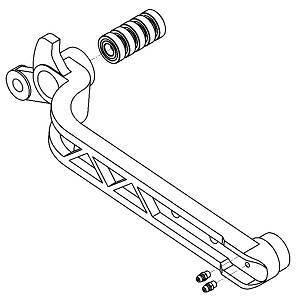

1 PW4420 Presswheel Arm with Bearings $90.00 VIEW

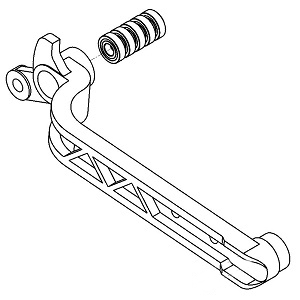

1 PW4405 Presswheel Arm with Bearings - 2004 Only - UNCOMMON $90.00 VIEW

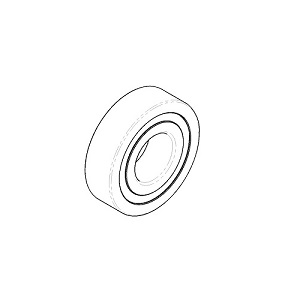

2 BE1228 Presswheel Arm Bearing 12 x 28mm 6001 2RS $2.00 VIEW
3 SP4011 Spring - Presswheel $20.00 VIEW
4 NU12MNY Nut M12 Nyloc Standard Thread $0.40 VIEW
5 PW4580 Press Wheel Spring Cap $7.00 VIEW

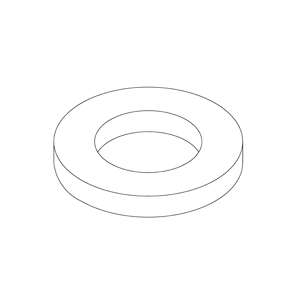

6 PW4460 Presswheel Mount/Arm Washer $0.80 VIEW
7 VBN4001 V-Bolt, Nuts and Washers; Bolt M12 90 x 100 ctr, Nuts and Washers $5.00 VIEW

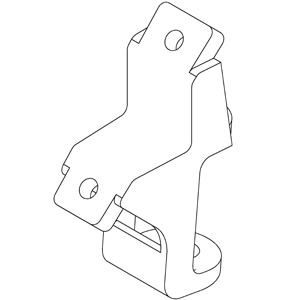

8 PW4450 Presswheel Pivot Mount Current $50.00 VIEW

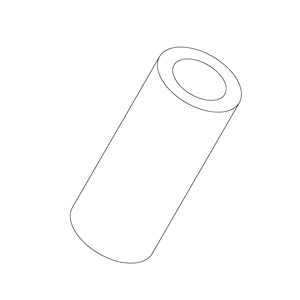

9 PW4480 Press Wheel Pivot Bearing Spacer 51 $4.00 VIEW

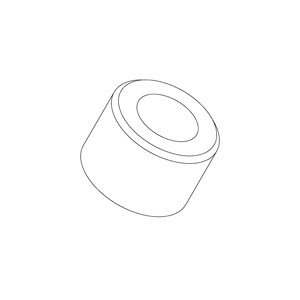

10 PW4470 Press Wheel Mount/Arm Spacer 22x15 $1.20 VIEW

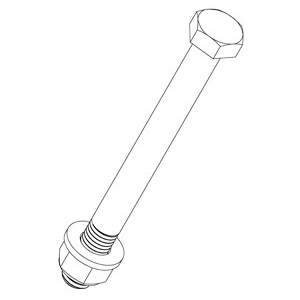

11 BNW12M130 Bolt 12m x 130, Nut NY & Washer FC $3.50 VIEW

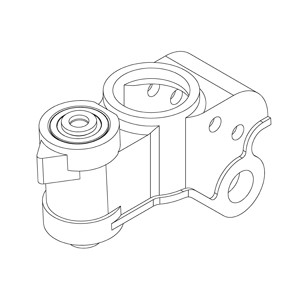

12 PW4500 Press Wheel Track Pivot 2004 with Bearings and Spacer $70.00 VIEW

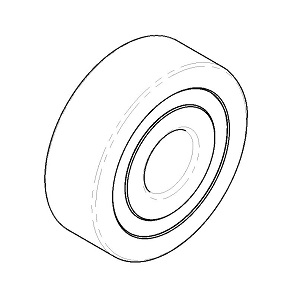

13 BE1237 Presswheel Pivot Bearing 12 x 37 6301 2RS $3.00 VIEW
14 PWS57 Press Wheel Clevis Pin & Split Pin $2.00 VIEW
15 PW4560 Press Wheel Yoke Machined $20.00 VIEW
16 NU12MZP Nut M12 CL8 Z/P $0.30 VIEW
17 PW4550 Press Wheel Pressure Bolt M12 x 215 $8.00 VIEW

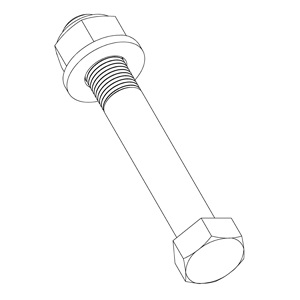

18 BNW12M85 Bolt 12M x 85, Nut NY & Washer FC $3.00 VIEW
19 PW4590 Presswheel Locking Pin $5.00 VIEW
20 PI3MIN Pin 3mm Minsup Locking $1.20 VIEW

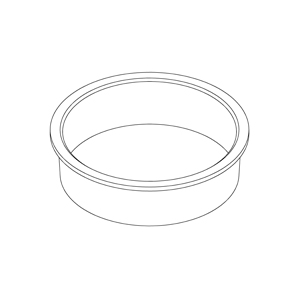

21 PW4415 Presswheel Seal Wear Sleeve 2004 for PW4405 Arm $5.00 VIEW

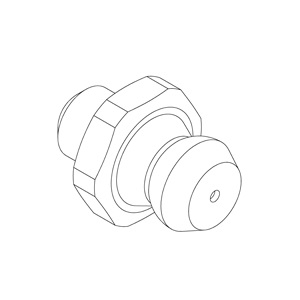

22 GN6 M 6 Grease Nipple $0.50 VIEW

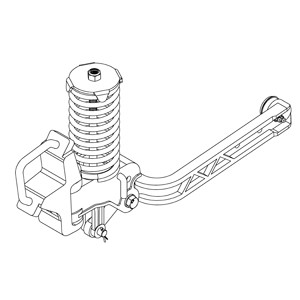

PW4000 Presswheel Mount Assembly - No Wheel $280.00 VIEW

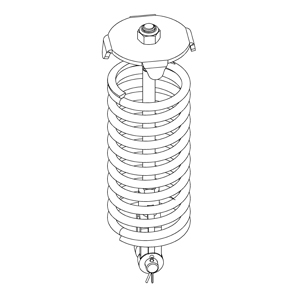

PWS55 Press Wheel Clevis, Rod, Spring, Cap Set $57.00 VIEW

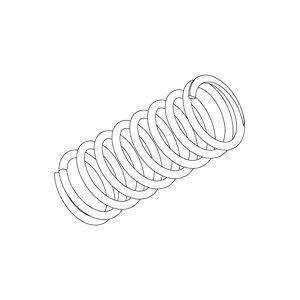

SP4012 Spring - Optional Inner for Presswheels $15.00 VIEW

Please Note: Products and Prices are subject to change without notice. All prices are in Australian Dollars and exclude GST. Prices exclude any freight costs that may apply.
