Hover over a part in the diagram to view details
| Ref No | Part No | Name | Price | ||
|---|---|---|---|---|---|
 |

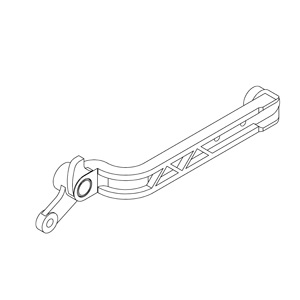

1 | PW4290 | Press Wheel Jump Arm 2003 | $80.00 | VIEW |
 |
2 | PW4276 | Presswheel MDL2002/2003 Jump Arm Bush | $5.00 | VIEW |
 |
3 | SP4011 | Spring - Presswheel | $20.00 | VIEW |
 |
4 | NU12MNY | Nut M12 Nyloc Standard Thread | $0.40 | VIEW |
 |
5 | PW4580 | Press Wheel Spring Cap | $7.00 | VIEW |
 |
6 | VBN4001 | V-Bolt, Nuts and Washers; Bolt M12 90 x 100 ctr, Nuts and Washers | $5.00 | VIEW |
 |
7 | PW4255 | OBSOLETE - Presswheel Pivot Mount MDL2002/2003 | $0.00 | VIEW |
 |
8 | PW4265 | Press Wheel Pivot Spacer 77 x 30 | $5.00 | VIEW |
 |
9 | BNW20M120 | Bolt 20M x 120, Nut & Washer FC | $10.00 | VIEW |
 |

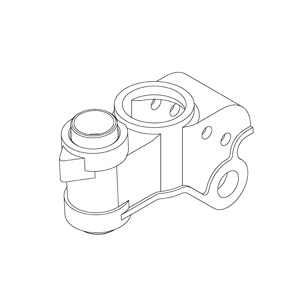

10 | PW4280 | Press Wheel Track Pivot 2003 | $70.00 | VIEW |
 |
11 | PW4266 | Press Wheel Pivot Bush 22L x 35D | $5.00 | VIEW |
 |

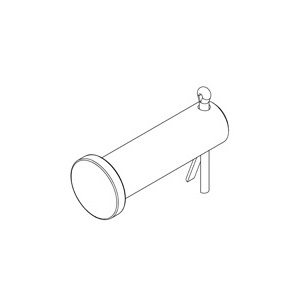

12 | PWS57 | Press Wheel Clevis Pin & Split Pin | $2.00 | VIEW |
 |

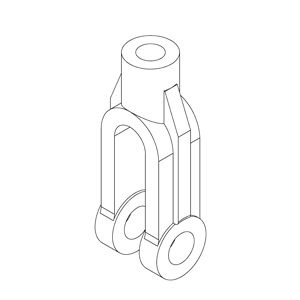

13 | PW4560 | Press Wheel Yoke Machined | $20.00 | VIEW |
 |

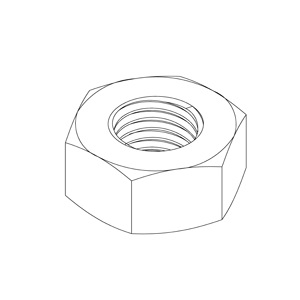

14 | NU12MZP | Nut M12 CL8 Z/P | $0.30 | VIEW |
 |

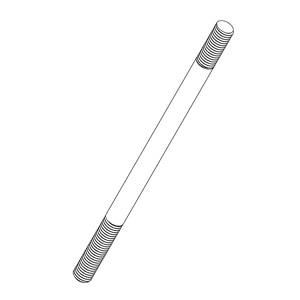

15 | PW4550 | Press Wheel Pressure Bolt M12 x 215 | $8.00 | VIEW |
 |

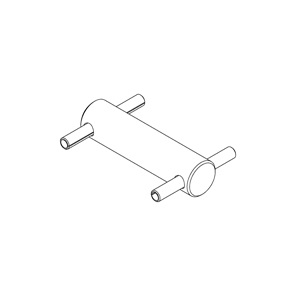

16 | PWR4285 | Press Wheel Arm Pivot Pin 2003, 85x22 with Roll Pins | $6.00 | VIEW |
 |
17 | PW4590 | Presswheel Locking Pin | $5.00 | VIEW |
 |
18 | PI3MIN | Pin 3mm Minsup Locking | $1.20 | VIEW |
 |
PWU45 | Presswheel Mount Upgrade for MDL2002/2003 | $62.00 | VIEW |
Please Note: Products and Prices are subject to change without notice. All prices are in Australian Dollars and exclude GST. Prices exclude any freight costs that may apply.
