Spare Parts


Fixed Extensions


1 2 2 3 3 4 4 5 6 6 7 7 8 9 10

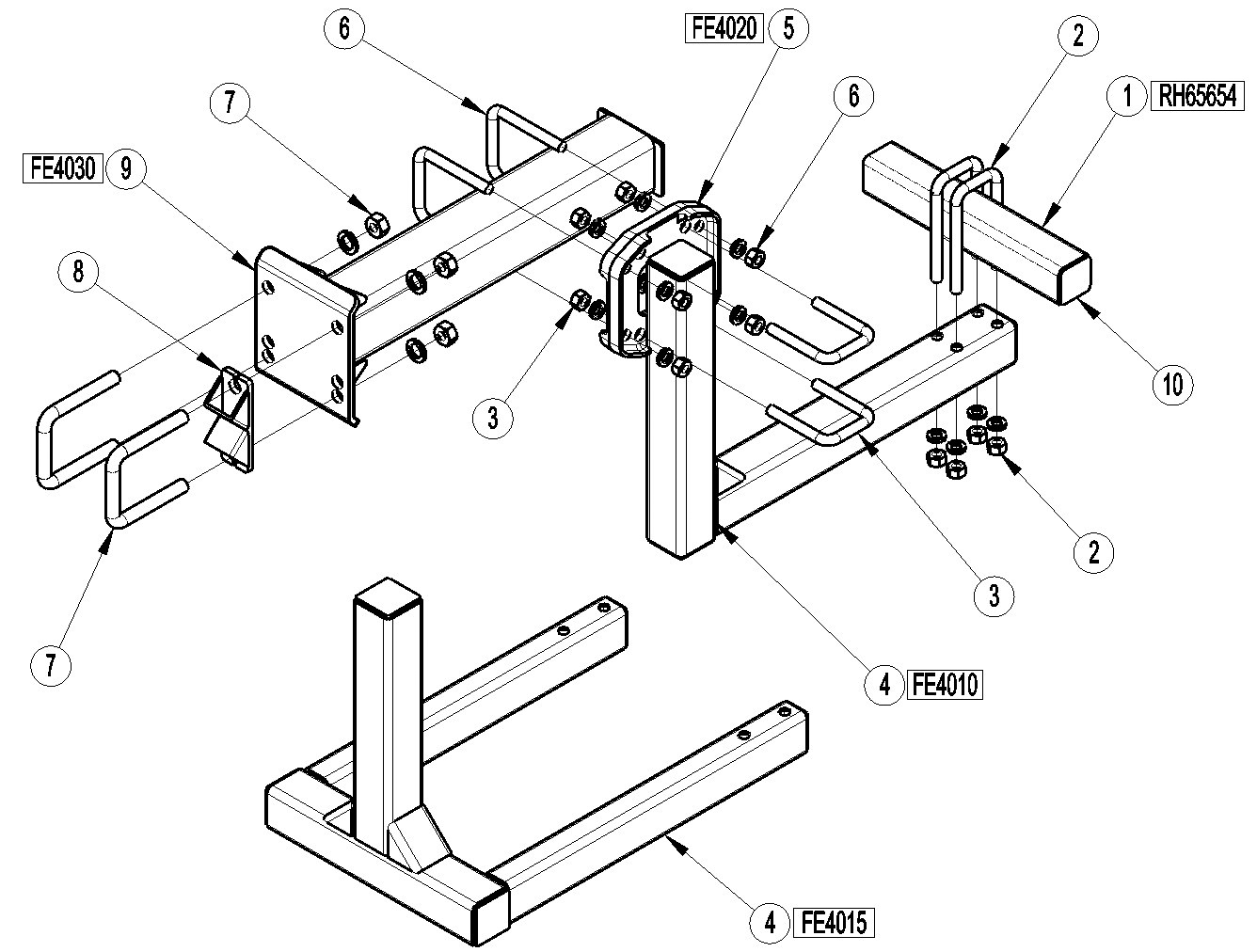

Hover over a part in the diagram to view details

Ref No Part No Name Price

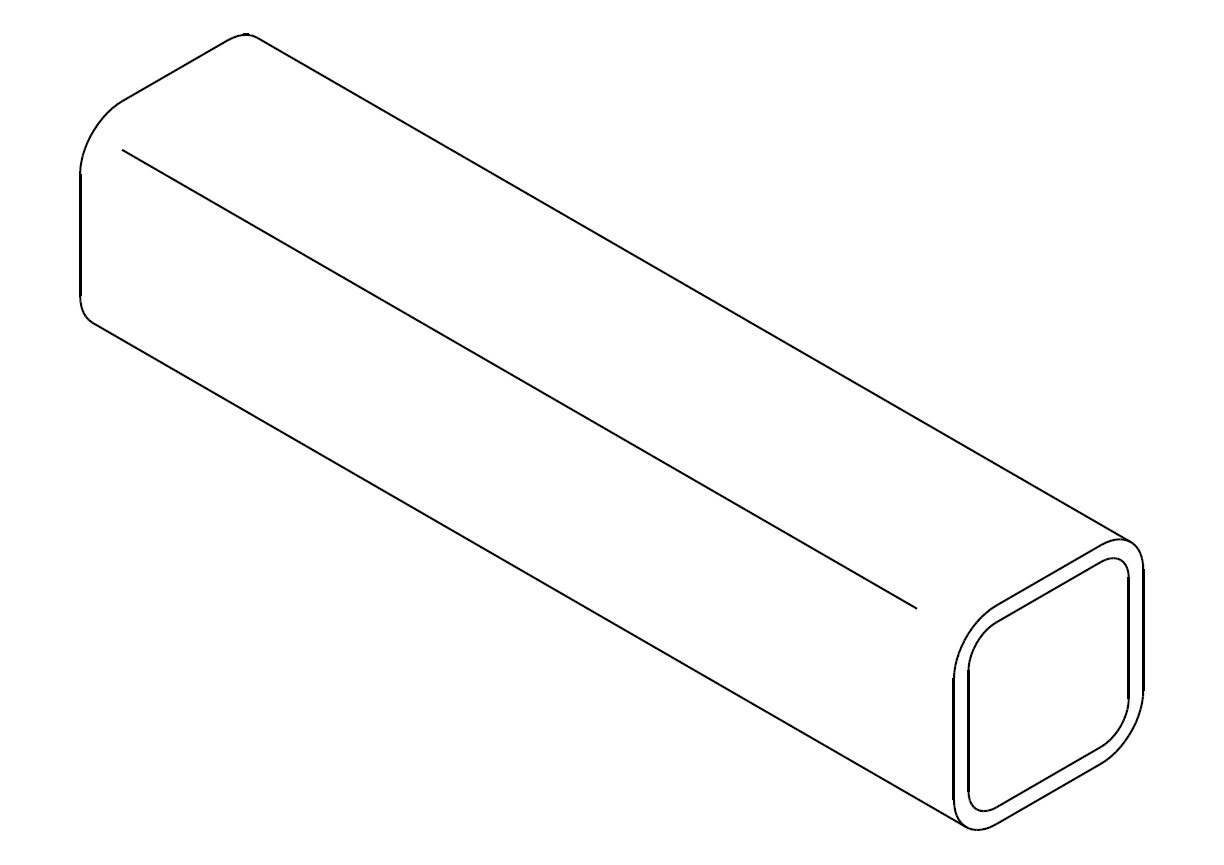

1 RH65654 RHS 65 x 65 x 4mm $45.00 VIEW

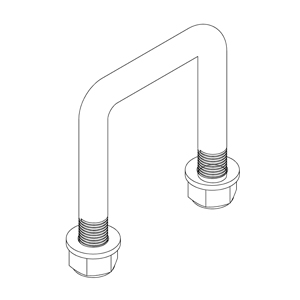

2 UBN4002 U Bolt 16M 166 x 67, Nut & Washer $20.00 VIEW

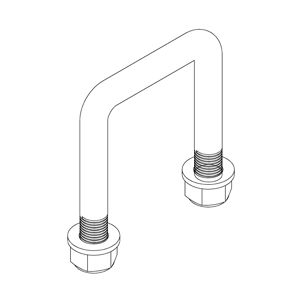

3 UBN4003 U Bolt 16M 105 x 77, Nut & Washer $15.00 VIEW

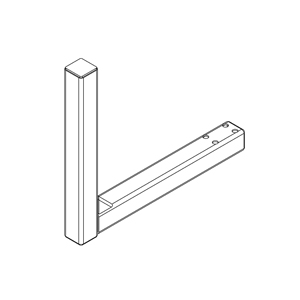

4 FE4010 Fixed Extension L Piece $170.00 VIEW

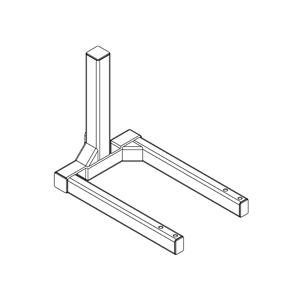

4 FE4015 Fixed Extension Double-Dropper $340.00 VIEW

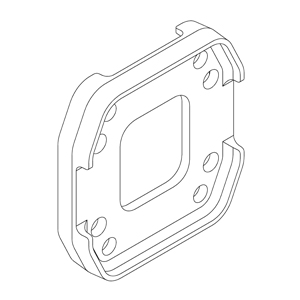

5 FE4020 Fixed Extension Cast Adaptor $40.00 VIEW

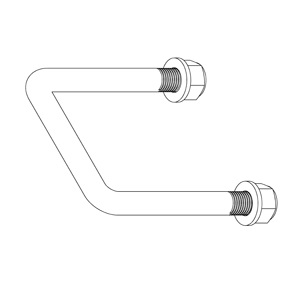

6 UBN3002 U Bolt 16M 130 x 102, Nut & Washer $20.00 VIEW
7 UBN3004 U Bolt 20M 135 x 102, Nuts & Washers $25.00 VIEW

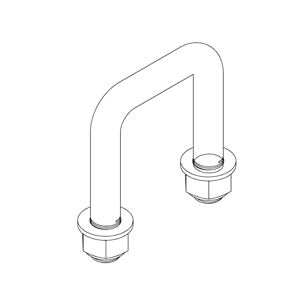

7 UBN3005 U Bolt M20 110 x 77, Nut & Washer $25.00 VIEW

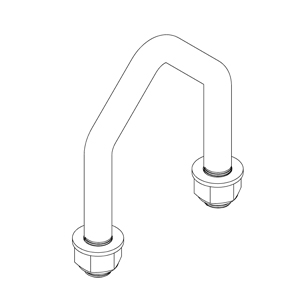

7 VBN3006 V Bolt M20 for Diagonal RHS w Nuts & Washers $25.00 VIEW
8 HS3080 Head Stock Plates - Diamond $20.00 VIEW

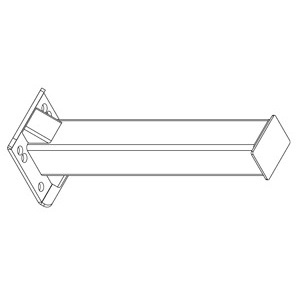

9 FE4030 Fixed Extension Arm Main Section $270.00 VIEW

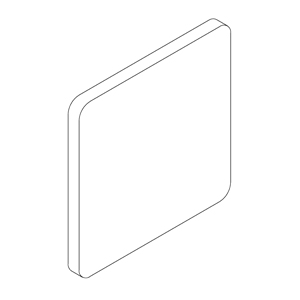

10 CA65 Cap - Square Ribbed Insert 65x65 $10.00 VIEW

Please Note: Products and Prices are subject to change without notice. All prices are in Australian Dollars and exclude GST. Prices exclude any freight costs that may apply.
